Utility support
Parts guidance, diagnostics, maintenance support, and worksite service planning for Cushman Street-Legal Hauler PRO LSV ELiTE lithium vehicles.
Hauler Pro LSV
Cushman fleet support

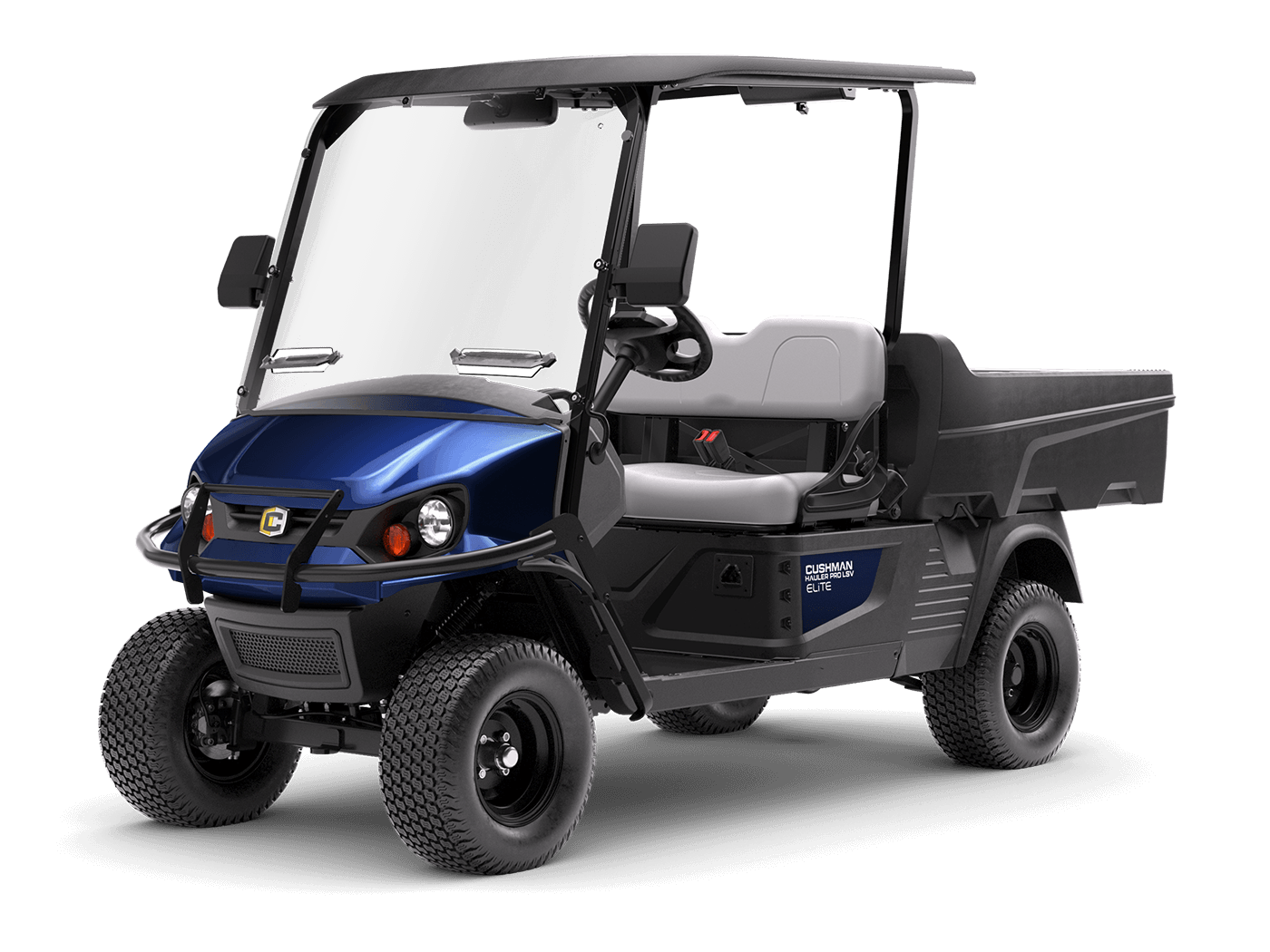

Street-Legal Hauler PRO LSV
Take superior performance further with the Street-Legal Hauler PRO LSV. Built from the trusted Hauler PRO platform, it combines ELiTE lithium power, speeds up to 25 mph, and serious utility capacity for demanding workdays.
*Street-Legal options are not available for sale in NY.
Starting MSRP$17,899
Seats2
Best forStreet-legal utility
PowertrainELiTE Lithium
Model overview
Street-Legal Access With PRO Utility
The Street-Legal Hauler PRO LSV takes the durability and strength of the Hauler PRO and adds road-ready LSV equipment. With a 1,200 lb vehicle load capacity, 800 lb bed load capacity, 1,500 lb towing capacity, 5.5 in ground clearance, and four-wheel hydraulic brakes, it is built for crews that need serious utility and increased road accessibility.
The standard specification table lists a 12-cu-ft roto-molded polyethylene cargo box; an optional 15-cu-ft aluminum cargo bed with integrated L-track is also featured by Cushman.
Common needs
ELiTE lithium charging, LSV lighting and safety equipment, DOT windshield support, rear-view mirror display, backup camera, automatic parking brake, brake service, and suspension checks.
Job-ready utility
Road-ready LSV equipment, aluminum cargo bed options, integrated L-track, Custom Solutions packages, and accessory planning help teams configure the vehicle around the job.
Model highlights
Street-Legal Hauler PRO LSV Features

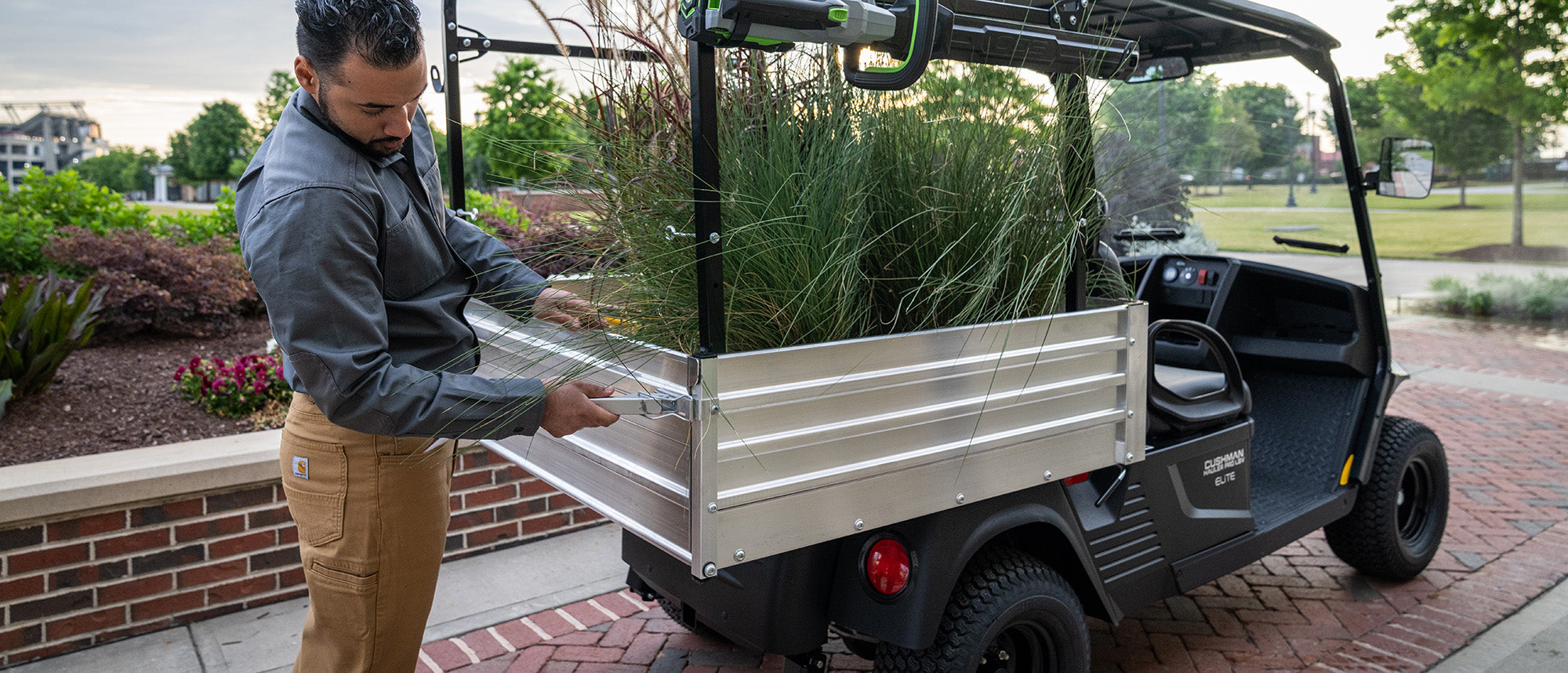

Optional 15-CU-FT Aluminum Cargo Bed
Haul rugged loads with an optional, lighter, corrosion-resistant aluminum cargo bed equipped with an integrated L-track.

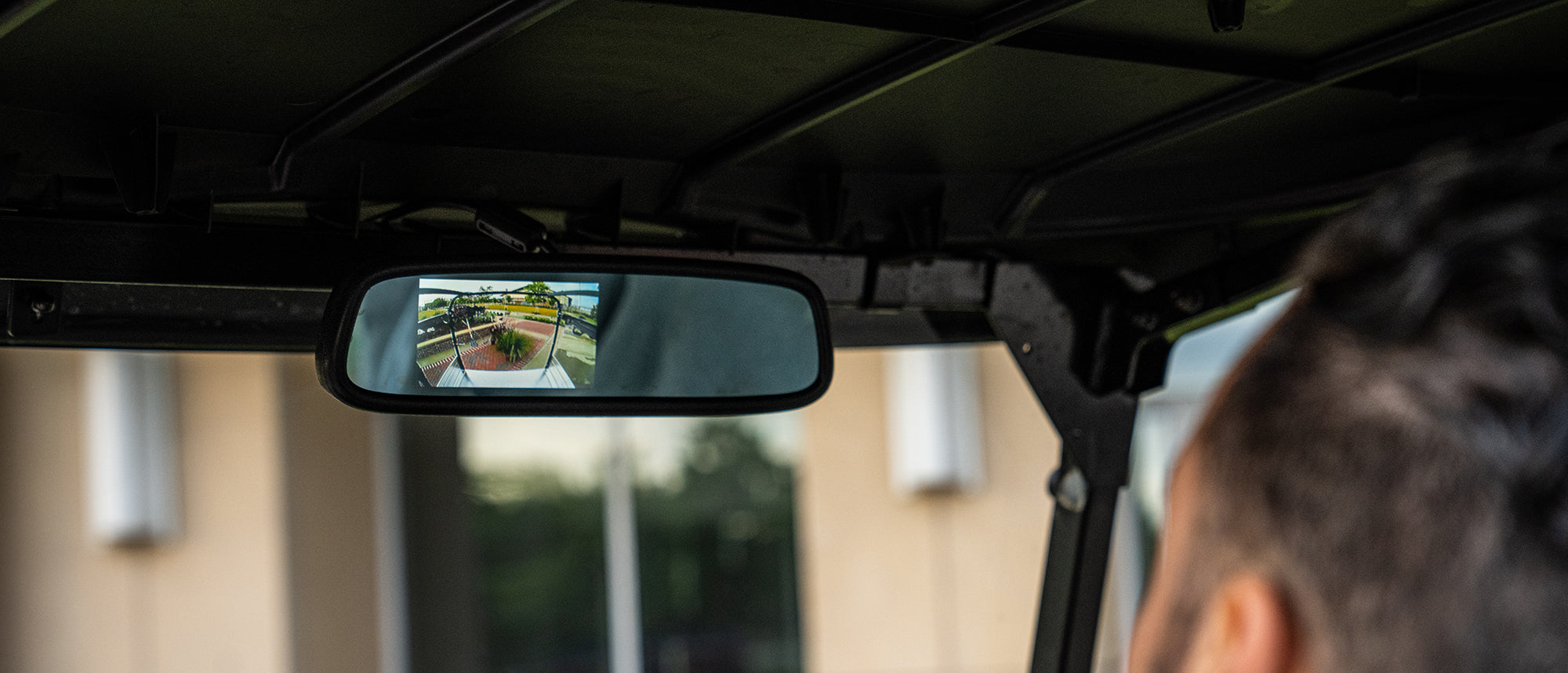

Rear-View Mirror With Integrated Display
The rear-view mirror features a screen that activates in reverse gear to display imaging from the backup camera for added operator awareness.

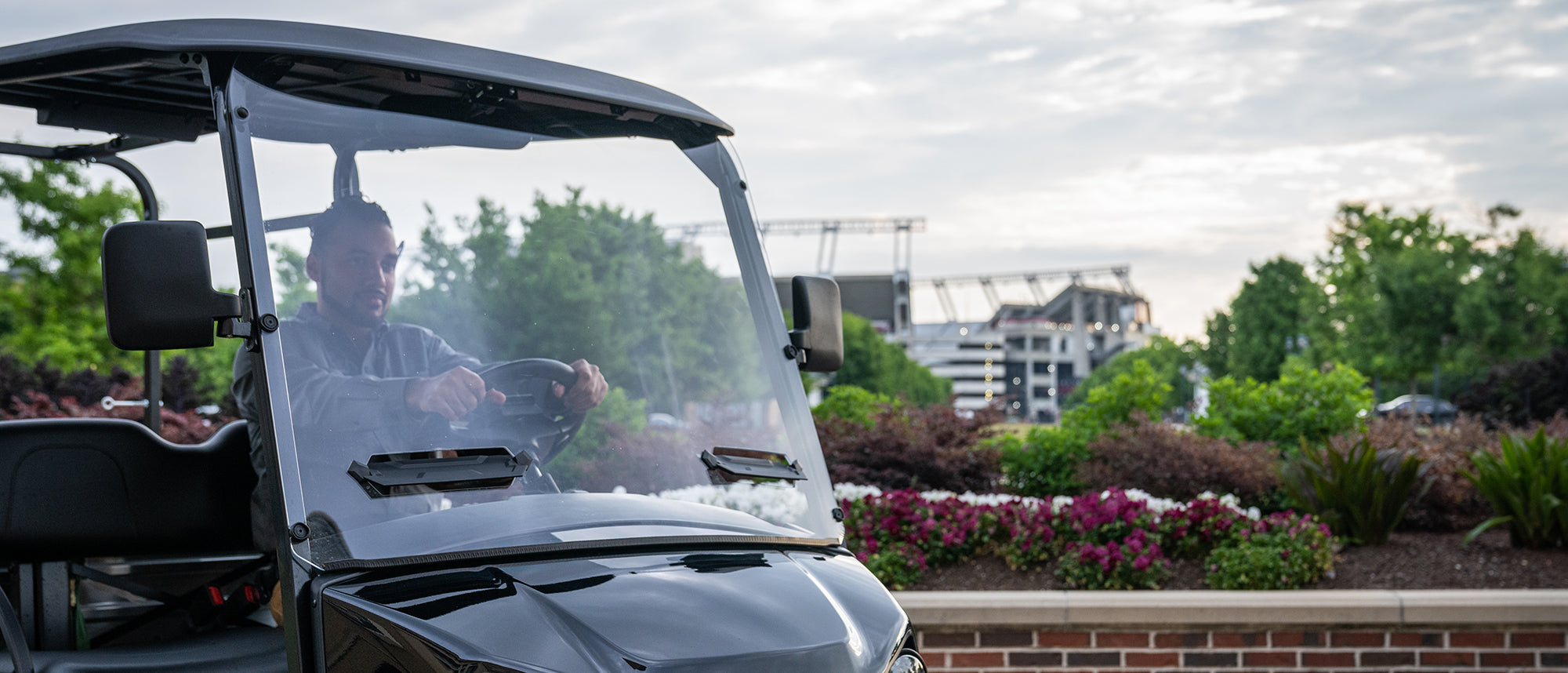

DOT-Approved Windshield
Protect against the elements with a DOT-approved aero windshield with dual adjustable vents.

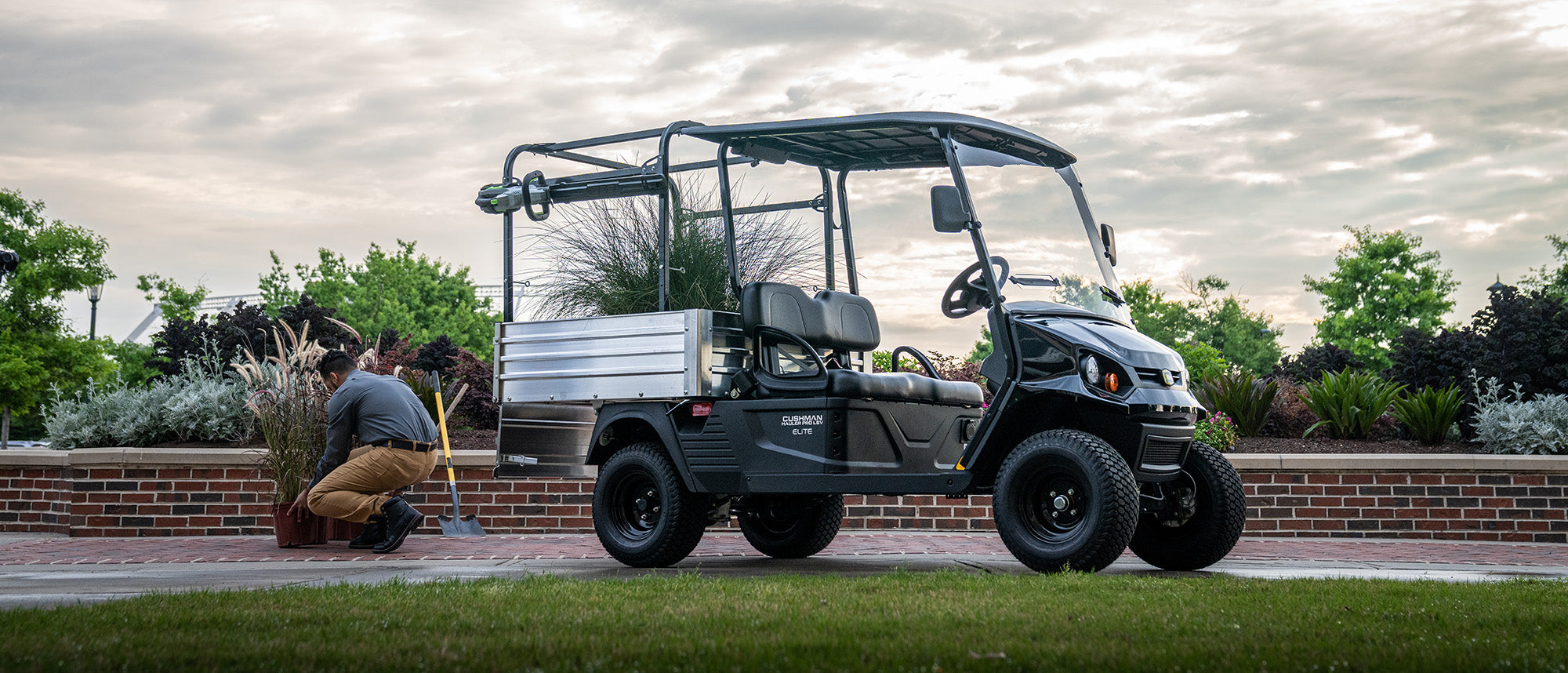

Automatic Parking Brake
Standard on this ELiTE-powered model, the automatic electromagnetic parking brake supports efficient stop-and-go utility work.
Powertrains
ELiTE Lithium Power
ELiTE Lithium Electric
Maintenance-free ELiTE lithium batteries powered by Samsung SDI technology are backed by a 5-year battery warranty and proven performance through tough projects.

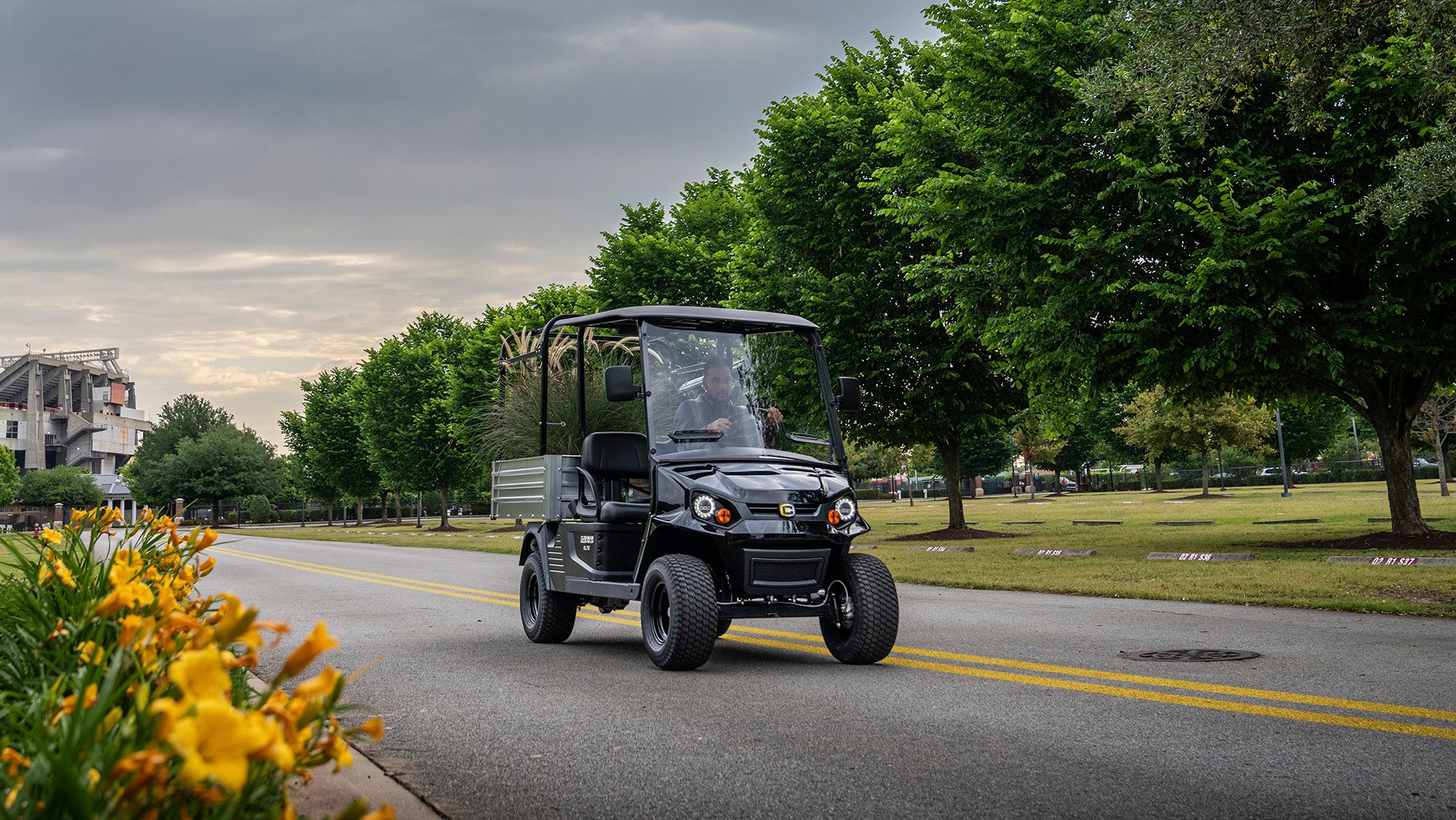

Street-Legal Performance
Increased road accessibility and speeds up to 25 mph help crews move between work zones where LSV operation is permitted.
Built for Payload
With 1,200 lb vehicle load capacity, 800 lb bed load capacity, 1,500 lb towing capacity, and four-wheel hydraulic brakes, the Hauler PRO LSV is built for street-legal utility demands.
Configurations
Service Notes
Powertrain Support
Support for 56.7V ELiTE lithium battery systems, twin-pack batteries, 811W world chargers, AC controller needs, direct-drive AC induction motors, and 12V auxiliary systems.
Bed and Accessory Support
Help with aluminum cargo bed components, integrated L-track, rear-view mirror displays, backup camera systems, DOT windshield parts, Custom Solutions packages, and accessory planning.
Frame, Body, and Tires
Welded steel frame with E-Coat and DuraShield powder coat, injection molded TPO body, Kenda K500 20 x 8-10 6-ply tires, leaf spring suspension, and hydraulic shock support.
Payload and Towing Checks
Guidance for teams using the Street-Legal Hauler PRO LSV around 2-person seating, 1,200 lb vehicle load capacity, 800 lb bed capacity, 1,500 lb towing capacity, 5.5 in ground clearance, and LSV route requirements.
Need help with a Cushman Street-Legal Hauler PRO LSV?
Send us the model year, symptoms, worksite use case, or parts request and our team will help route the next step.
