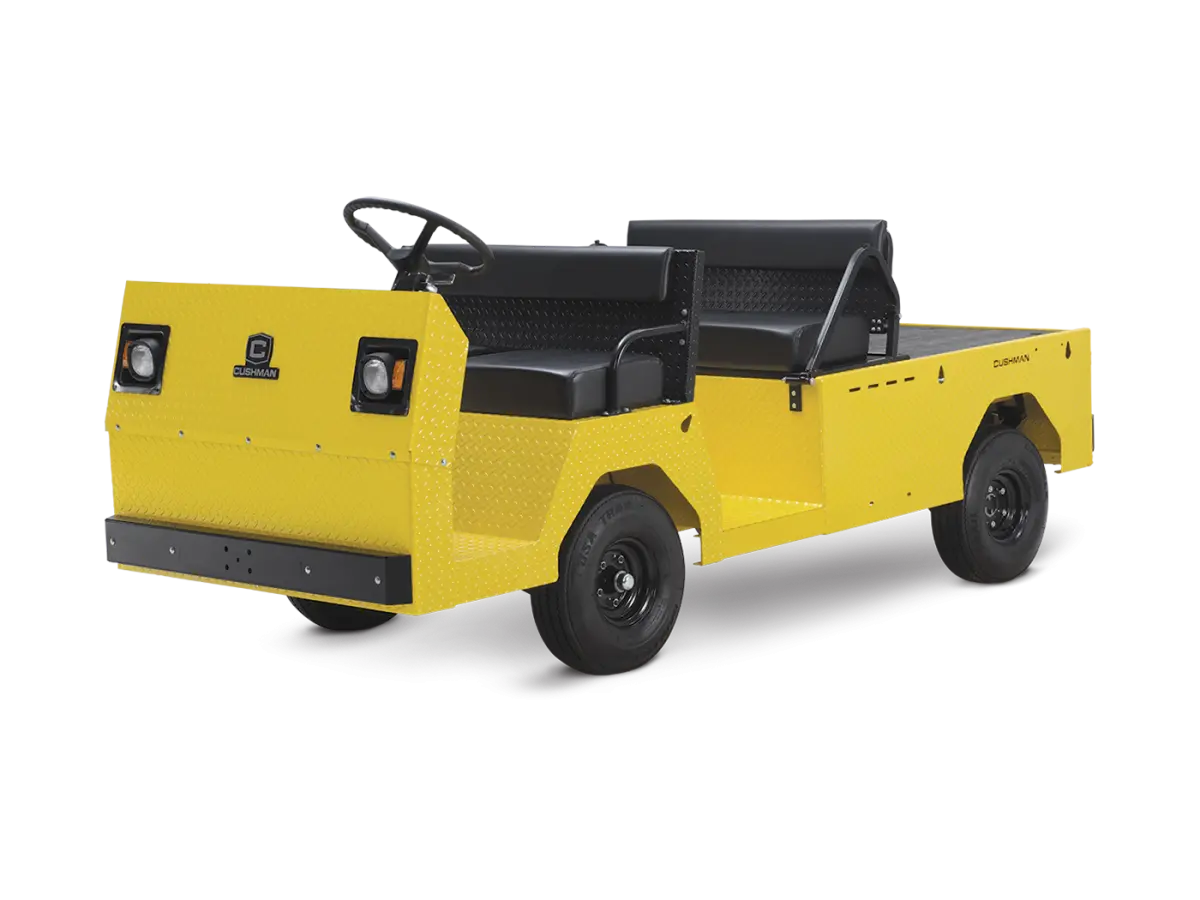

Titan XD
Cushman burden carrier
Titan XD
Push the boundaries of workday productivity with the Cushman Titan XD. This electric burden carrier pairs a 48V AC drivetrain with automatic parking brake technology, 2- or 4-passenger configurations, and serious pulling power for demanding facilities.
Starting MSRP$16,238
Towing capacity8,000 lb
Vehicle load3,000 lb
Powertrain48V Lead Acid
Model overview
Heavy-Duty Electric Muscle
The Titan XD is built for extensive workdays with a 48V AC electric drivetrain, 17.2 hp peak output, and up to 8,000 lb towing capacity. IntelliBrake automatic parking brake technology helps hold the vehicle when stopped and provides motor braking control on steep terrain.
Common needs
Lead-acid battery service, on-board charger checks, AC controller diagnostics, automatic parking brake support, hydraulic brake service, tire replacement, and suspension inspection.
Job-ready setup
2- or 4-passenger seating, cargo-deck needs, diamond-plated steel durability, Custom Solutions packages, and worksite accessory planning help teams shape the Titan XD around the job.
Model highlights
Titan XD Features
Automatic Parking Brake
IntelliBrake automatic parking brake technology combines motor braking with an automatic parking brake that engages whenever the vehicle is stopped.
Halogen Headlights
Halogen headlights help improve visibility for operators working through changing facility conditions.
2 or 4-Passenger Seating
Choose the configuration that fits your facility with available 2-person or 4-person seating.

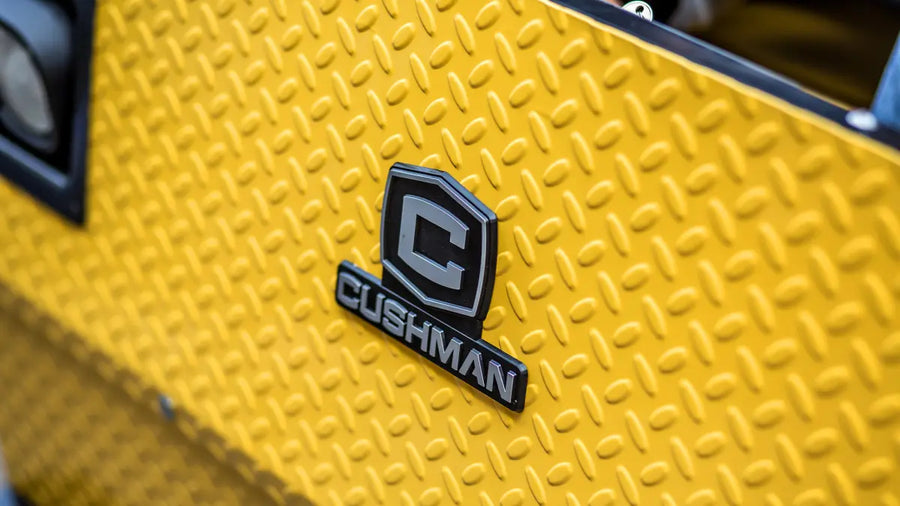

Diamond-Plated Steel
Diamond-plated steel is built for harsh work conditions and daily facility demands.
Powertrains
48V AC Electric Power
Lead Acid Electric
The Titan XD uses a 48V lead-acid electric system with eight 6V deep-cycle swing-out batteries and an on-board Delta-Q 120V AC charger.
AC Drivetrain
A 450-amp AC speed controller, motor-shaft direct drive, helical-gear differential, and dash-mounted forward-neutral-reverse selector support heavy-duty facility work.
Heavy Pulling Power
With 3,000 lb vehicle load capacity, up to 2,600 lb bed load capacity, and up to 8,000 lb towing capacity, the Titan XD is built for serious burden-carrier duty.
Configurations
Configuration and Service Notes
48V Electric 2-Passenger
2-passenger configuration with 114 in overall length, 41.5 in x 75 in cargo deck capacity, 3,000 lb vehicle load capacity, and up to 2,600 lb bed load capacity.
48V Electric 4-Passenger
4-passenger configuration with the shorter 41.5 in x 53.5 in cargo deck, 3,000 lb vehicle load capacity, and up to 2,200 lb bed load capacity.
Frame, Deck, and Tires
Welded steel frame with DuraShield powder coat, diamond-plate patterned body finish, weather-proof deck board, 5.70 x 8 load-range C tires, and Safety Yellow standard color.
Worksite Checks
Guidance for teams using the Titan XD around 14 mph operation, 4.75 in differential ground clearance, 21.25 ft outside clearance circle, rack-and-pinion steering, and hydraulic service brakes.
Need help with a Cushman Titan XD?
Send us the model year, symptoms, worksite use case, or parts request and our team will help route the next step.
