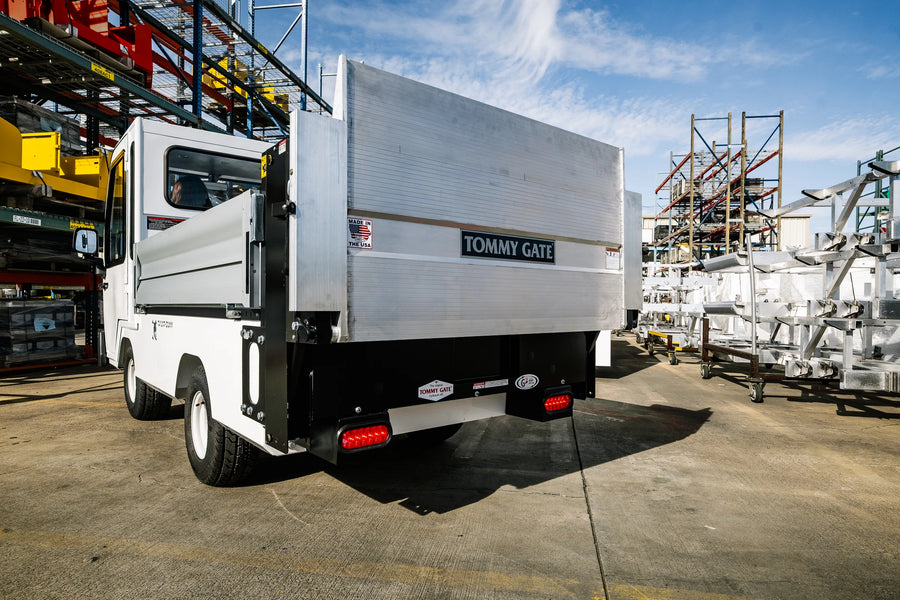

Tommy Gate G2 Series Liftgate
The dual-cylinder, parallel-arm hydraulic Tommy Gate G2 Series liftgate provides up to 42 inches of vertical travel and 500 pounds of lift capacity.
XL LIFT GATE
Industrial Liftgate Trucks
Taylor-Dunn Bigfoot XL Industrial Liftgate Truck
All-electric cargo handling with factory-integrated Tommy Gate G2 liftgate.

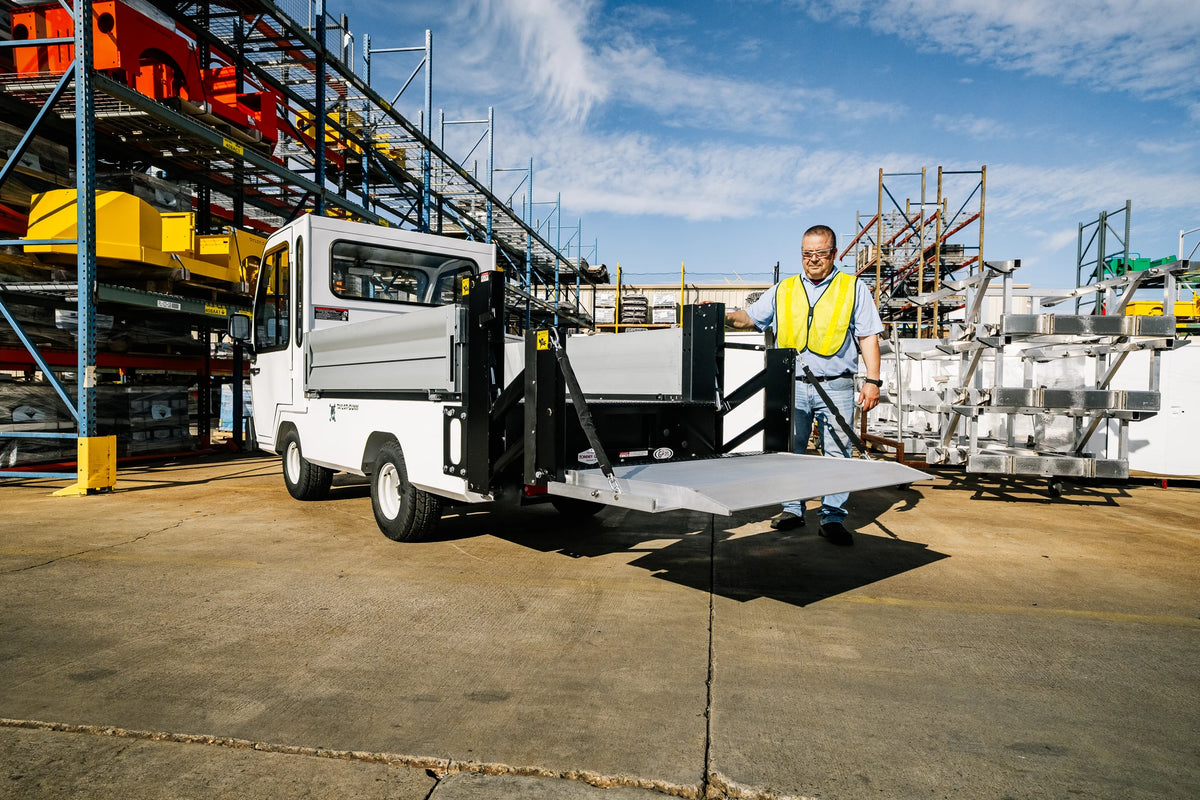

The Bigfoot XL Industrial Liftgate Truck pairs the proven Taylor-Dunn Bigfoot XL electric platform with a factory-integrated Tommy Gate G2 Series hydraulic liftgate.
It gives one operator a compact, all-electric way to handle ground-to-deck cargo with 2,500 lb payload capacity and a 500 lb liftgate rating.
2,500 lb
500 lb
78 mi
2,500 lbPayload capacity
500 lbLiftgate capacity
42 inVertical travel
18 mphTop speed
Battery pack, payload, liftgate use, route conditions, charger type, and selected platform options affect range, charge time, and cargo handling performance.
Maximum workforce and fleet efficiency

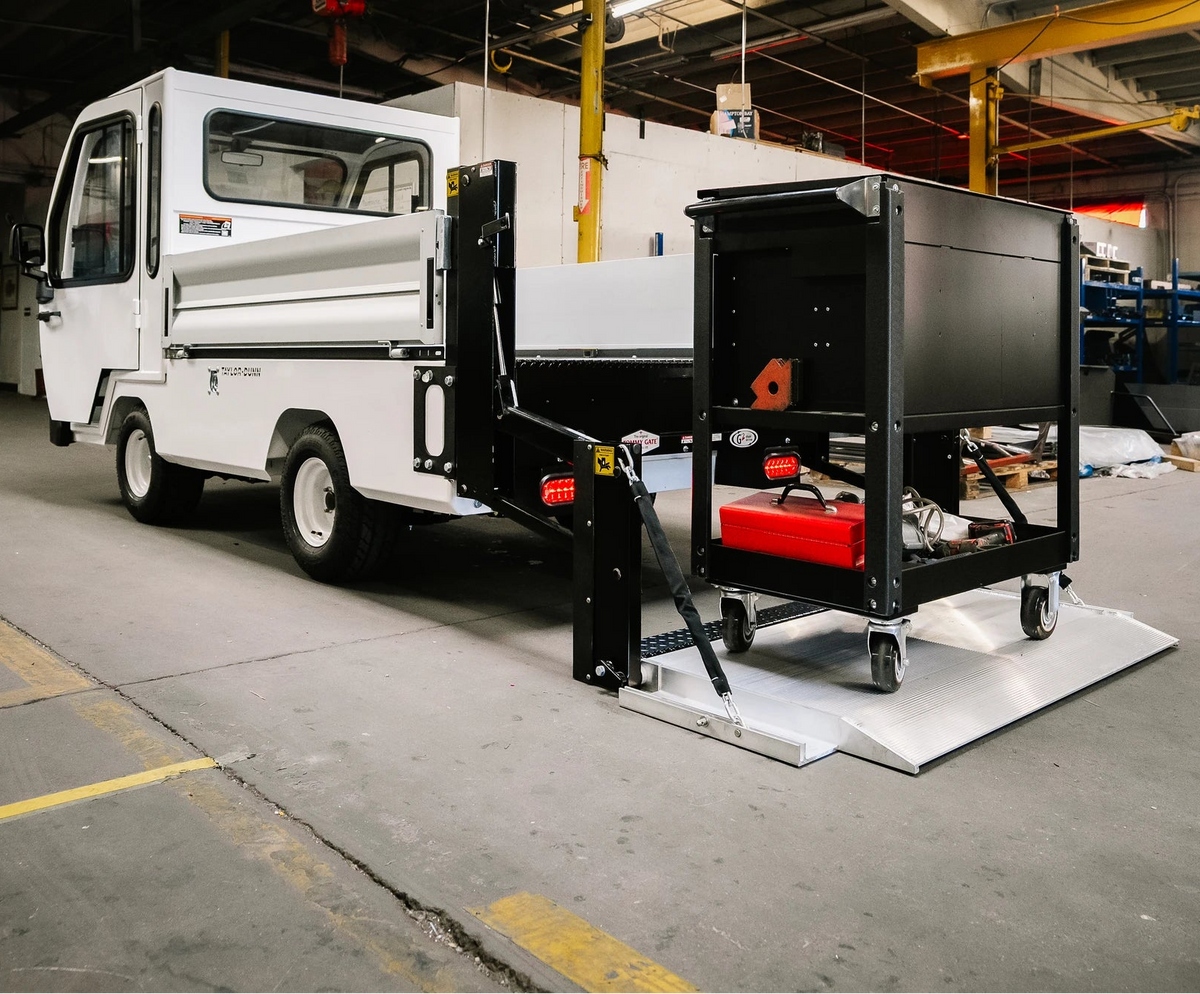

Ground-to-Deck Cargo Handling Without a Full-Size Truck
The Bigfoot XL Industrial Liftgate Truck delivers full-size work-truck cargo capability in a more compact, maneuverable, all-electric platform. Its electrical, mechanical, and chassis systems are engineered as one cohesive cargo-handling solution, backed by Taylor-Dunn's four-year factory vehicle warranty.
Taylor-Dunn liftgate truck highlights
Factory-Integrated Cargo Handling

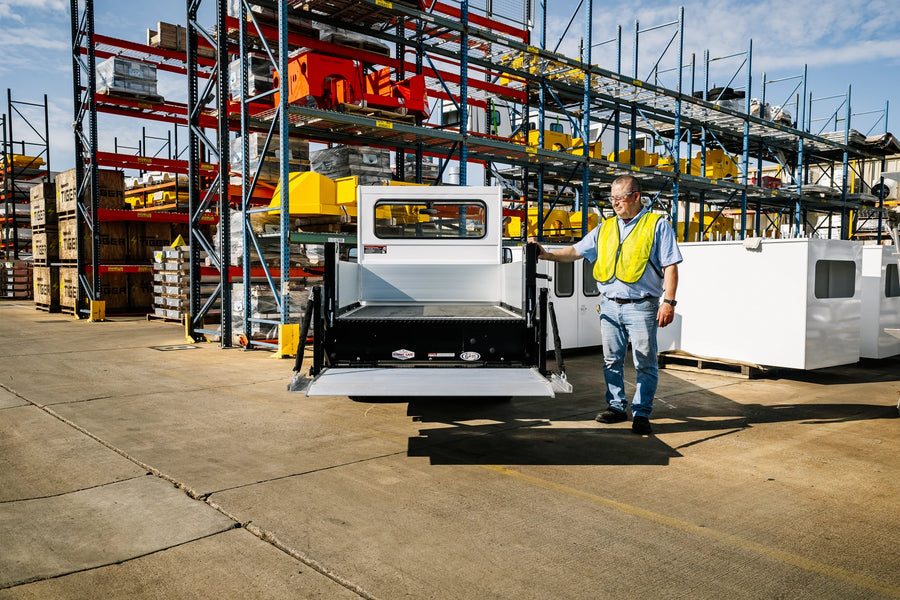

Single-Operator Loading
Ground-to-deck cargo handling helps one operator move material with less manual lifting and less support equipment on site.

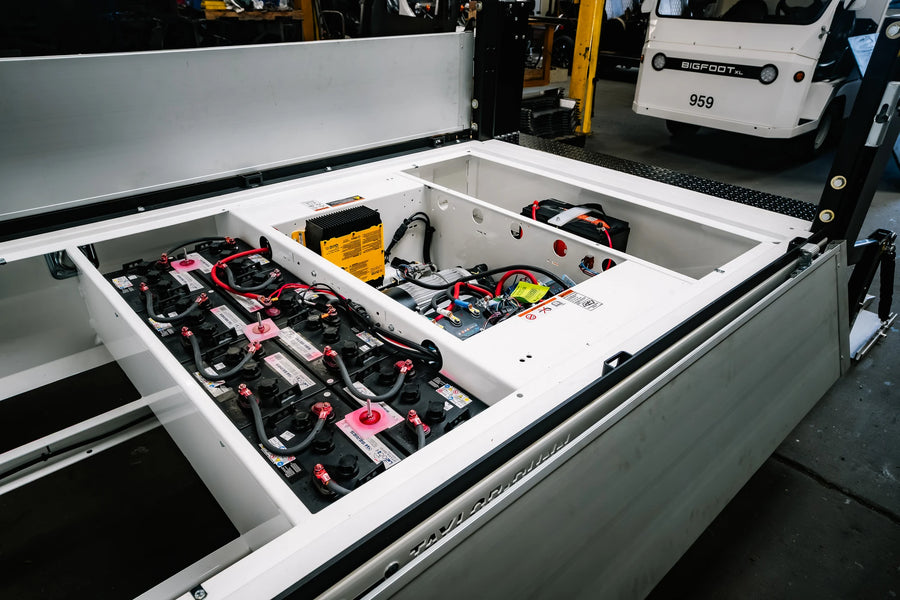

Integrated Electrical System
The liftgate charges with the vehicle through an integrated power system, reducing separate charging infrastructure and simplifying fleet operation.
Factory integrated system
Electrical, Mechanical, and Chassis Integration
Integrated Power System
The liftgate charges with the vehicle because its lithium-ion battery connects directly to the main vehicle battery.
OEM-Grade Mounting
Factory-engineered mounting maintains tailgate lighting compliance and gives the liftgate brackets, connections, and seals a vehicle-specific fit.
Purpose-Built Frame
A reinforced frame and added ballast support stability under liftgate loads while preserving the Bigfoot XL work platform.
Specs and dimensions
Bigfoot XL Industrial Liftgate Truck Key Specs
Payload2,500 lb payload capacity
Liftgate capacity500 lb / up to 42 in vertical travel
Vehicle speed and range18 mph top speed / up to 78 mi range with optional 16 kWh lithium ion
Battery optionsStandard FLA or optional lithium ion
Liftgate systemDual hydraulic cylinder parallel-arm / fully enclosed hydraulic system

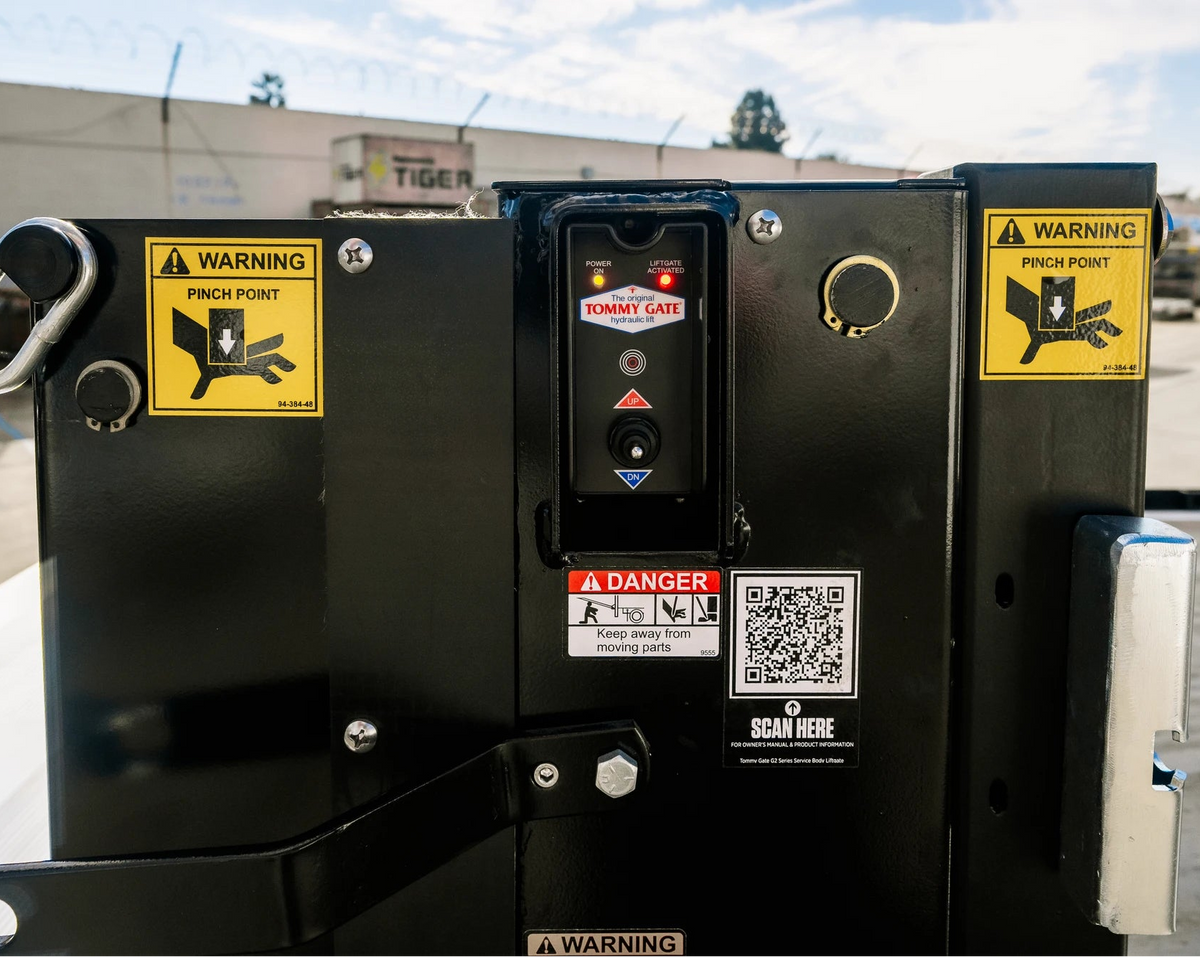

Controls and platformRecessed toggle with 90-second auto shutoff / steel, TommyTraction, aluminum, or bargrate platform options
Cart Mart Support
Parts, service, diagnostics, tire checks, brakes, lighting checks, Tommy Gate control questions, liftgate inspection, and cargo-route guidance for Taylor-Dunn Bigfoot XL Liftgate fleets.
Batteries and Chargers
Support for standard FLA and optional lithium-ion battery planning, charger checks, range expectations, liftgate charging behavior, and replacement timing.
Liftgate, Body, and Route Fit
Help matching platform option, cargo weight, loading height, liftgate use, campus route, indoor access, and service workflow to the job.
Need help with a Taylor-Dunn Bigfoot XL Liftgate truck?
Tell Cart Mart about your cargo weight, loading height, route, battery and charging requirements, and preferred liftgate platform. Our team can help configure the Bigfoot XL Liftgate Truck for your operation.
