Modern Safety Package
Controlled 6 mph speed, headlights, taillights, brake lights, reverse beeper, horn, emergency shut-off, operator presence sensing, and optional light bar support safe movement in active facilities.
Tow Tractors
Tow Tractors
Taylor-Dunn TT-316 Tow Tractor
Electric horizontal material handling with up to 16,000 lb towing capacity.
The TT-316 is a highly maneuverable electric tow tractor built for moving trailers, carts, and staged material through manufacturing, warehousing, distribution, aviation, healthcare, and retail operations.
Use it when one operator needs to move multiple loads through a facility while reducing forklift traffic, labor demand, and operating cost.
16,000 lb
320 lb
Type E
16,000 lbTow capacity
320 lbDrawbar pull
6 mphControlled max speed
74.5 inTurning radius
Battery pack, payload, towing, charger type, grades, floor condition, and route conditions affect range, charge time, and towing performance.
Horizontal material handling
A Tow Tractor Alternative to Repeated Forklift Trips
The TT-316 is designed for operations where trailers, carts, and staged loads need to move across a facility without tying up forklifts for every horizontal move.
Its compact 39.5 in width, 74.5 in turning radius, 36V industrial battery fit, and off-board charging support make it practical for busy indoor material-handling routes.
Taylor-Dunn tow tractor highlights
Built Around Safety, Operator Comfort, and Uptime
Operator-Focused Cab Area
A spring-loaded adjustable seat, tilt-and-telescopic steering, low 10.5 in step height, front coil springs, and rear leaf springs help operators stay comfortable through repeated routes.
Industrial Tow Platform
The TT-316 uses a fully welded, unitized 10-gauge frame, 7.5 HP AC motor, direct-drive double-reduction transaxle, and three-wheel hydraulic disc brakes with an automatic electric parking brake. Taylor-Dunn backs the vehicle with a four-year factory warranty.
Detail views
TT-316 Details for Facility Fit Checks

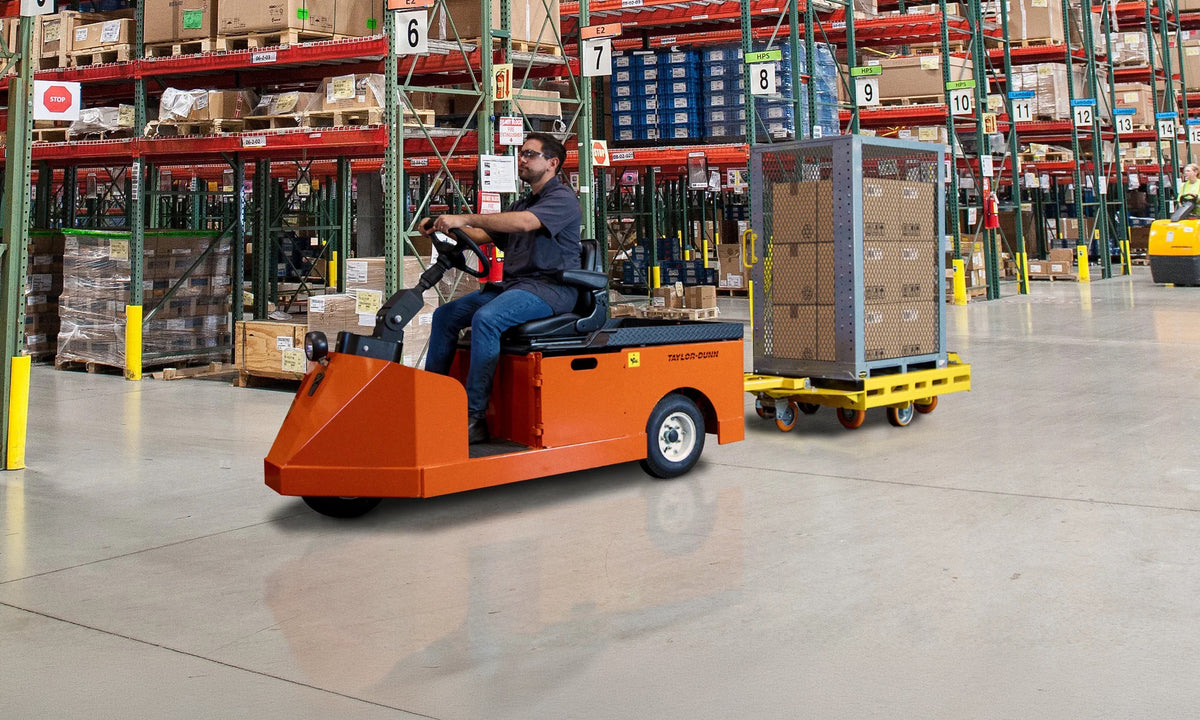

Manufacturing Route Context
Use for staged cart and trailer movement through manufacturing, warehousing, and distribution routes.
Indoor Tow Tractor Use
Compact electric operation supports material movement in busy interior spaces where visibility and maneuvering matter.
Hitch Detail
Match hitch setup, trailer type, and route conditions before finalizing a tow tractor configuration.
Hitch Release
Detail images help teams review operator access points and routine trailer connection workflows.
Headlight Detail
Lighting supports awareness in plants, warehouses, back-of-house routes, and shared work areas.
Adjustable Steering
Tilt-and-telescopic steering helps accommodate multiple operators and repeated route use.
Facility Movement
Review aisle width, trailer path, staging area, and turn points with the site before deployment.
Light Bar Option
Optional high-visibility lighting can support active mixed-traffic environments and route awareness.
Fleet work fit
Built for Repeated Trailer Movement
Manufacturing and Warehousing
Move multiple trailers or carts with one operator through production, warehouse, distribution, and back-of-house routes.
Forklift Traffic Reduction
Use the TT-316 to reduce forklift trips for horizontal movement so lift trucks can stay focused on lift tasks.
36V Industrial Battery Fit
The TT-316 ships from the factory without a battery. It accepts compatible 36V industrial batteries within its specified compartment and weight limits and uses off-board charging.
Specs and dimensions
Taylor-Dunn TT-316 Tow Tractor Specs
ModelTT-316 Tow Tractor
Load capacity400 lb / 182 kg
Towing capacity16,000 lb / 7,257 kg
Drawbar / speed320 lb drawbar pull / 6 mph unloaded max
Power supply7.5 HP AC motor / 36V industrial battery fit / off-board charging
ComplianceType E OSHA 1910.178 / ANSI B56.9
Cart Mart Support
Parts, service, diagnostics, brake checks, tire support, controller questions, and route-fit guidance for Taylor-Dunn TT-316 tow tractor fleets.
Batteries and Chargers
Support for 36V industrial battery selection, battery compartment limits, off-board charger planning, replacement timing, and range expectations.
Hitches, Lights, and Route Fit
Help matching hitch setup, light bar options, non-marking tires, bumpers, trailer type, turn radius, surface condition, and facility traffic to the job.
Need help with a Taylor-Dunn TT-316 tow tractor?
Tell Cart Mart about your route, trailer type, tow load, battery and charging requirements, and hitch setup. Our team can help configure the TT-316 for your facility.
